Patrik QTS-Wave

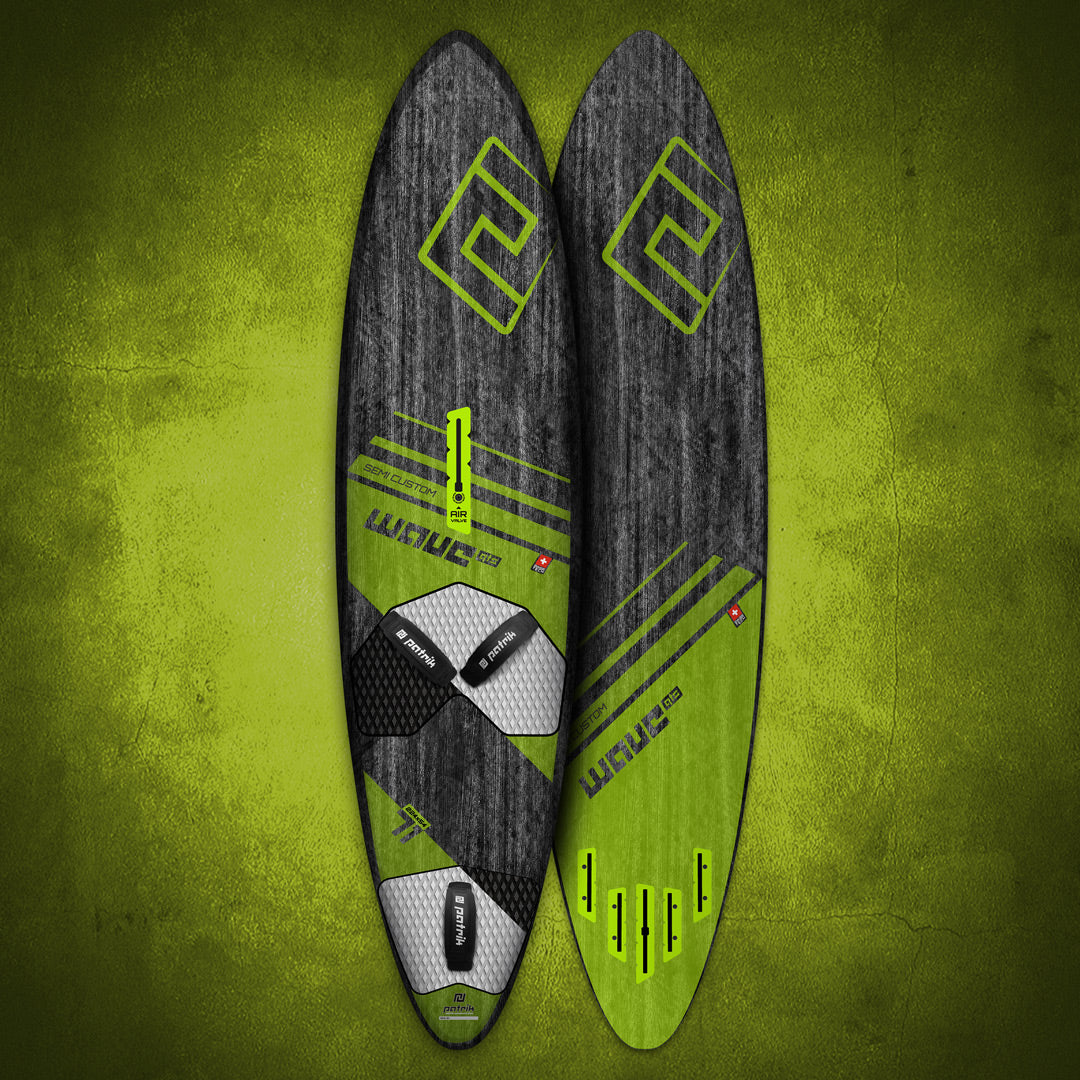

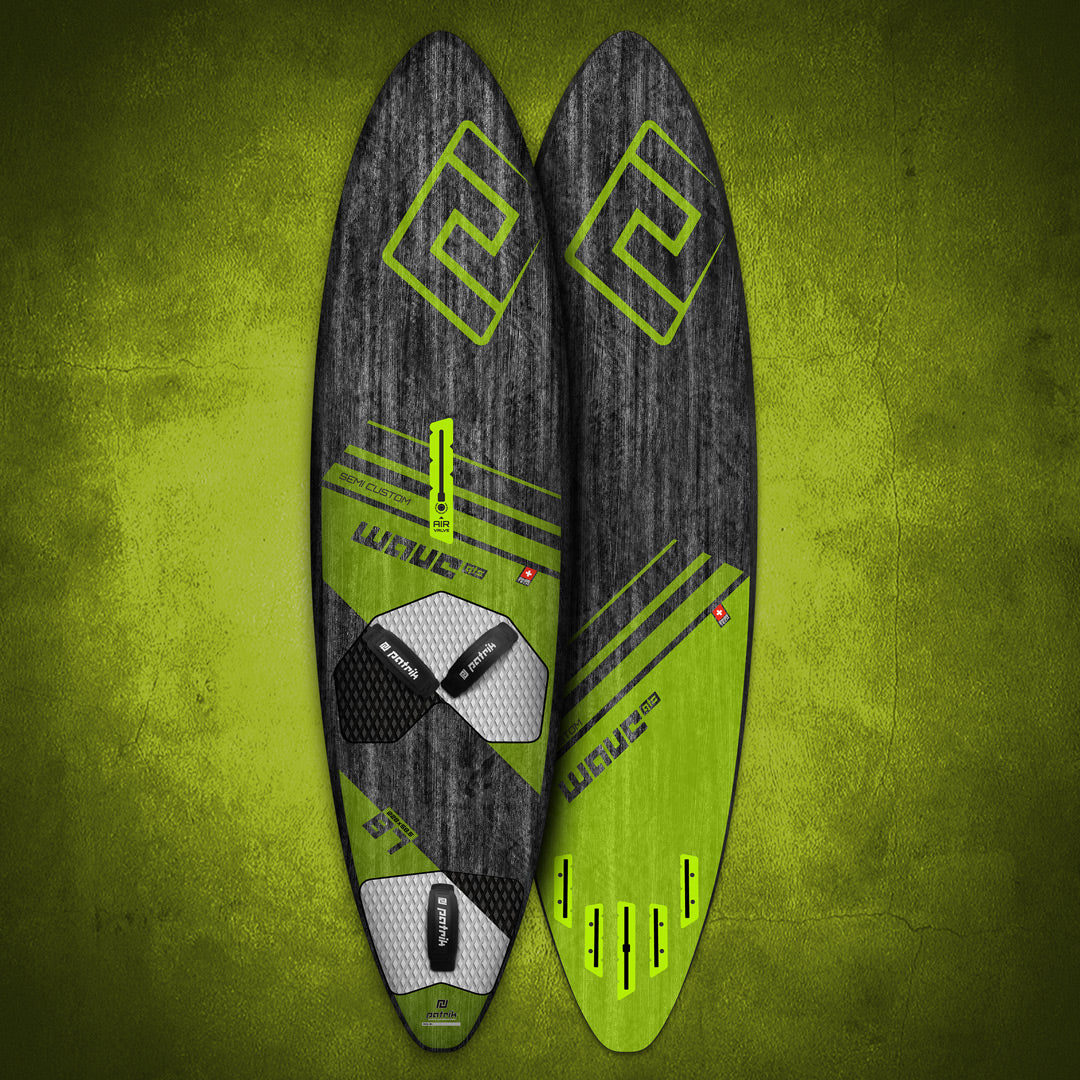

Name: Patrik QTS-Wave
Availability: InStock

From 32 759 kr incl. VAT

OVERVIEW

Different wave spots, different conditions and different styles of riding make it really difficult to develop a high-level production wave board... but our QT-WAVE is the answer for those who want to travel light and play in any kind of wind and wave conditions.

With the 5 fin boxes (1x US, 4x Slot) you can setup the board as Singlefin, Twinser, Trailer, Tri-Fin, Thruster, Quad and even Trailer Quad (5Fin). With all these options you can perfectly adapt the QT-Wave to your style of riding and the type of waves the spot is offering.

WHAT'S NEW TO THE PREVIOUS MODEL:
- Modified tail rocker for a more agressive feeling on the wave and more control on the turns
- New Vee-shaped tail section for better water release and a more alive rail-to-rail feel
- Optimised strength-to-weight ratio and new graphics by Fabio Canella

SHAPE

Optical aspects & Footpads
With the new graphics influenced by Italian designer Fabio Canella we have created a colourful but still clean board design. The 6mm thick diamond groove grip pad has an extra 6mm soft sponge under-layer which makes it 12mm in total. The special layup uses the hard layer to spread the load onto a wider board surface via the soft bottom layer of the pad. This gives us more impact resistance while keeping a direct feeling under your feet.

Shape & Outline
Balanced and pretty. Shaped by hand. After thousands of boards shaped the experience and precision of our shaper Patrik Diethelm will easily outperform any CNC software. The result is a perfect shape with a beautifully flowing outline. The wider front section gives you enough lift in the nose area to go planing early and to be able to hit the whitewater late. The narrow tail gives you that agressive feeling when moving the board from rail to rail. Enjoy maximum grip in carved top turns. Choose between carving and throwing spray or sliding and new-school tricks on the wave. This board will never hold you back.

Scoop-Rocker and Bottom Contour
New Single into double concave into vee concept that creates more rocker on the rail line while keeping a moderate rocker in the center. This gives you the best of both worlds. Good accelleration and speed on the straight and more response and a playful radical feeling in the turns. A slight tail kick under your backfoot allows you adapt your turns to the wave any time. Progressive bottom shape with deeper concaves on the smaller sizes for more control. Connect fast sections with ease, throw some big spray... The new QT can do it all.

Fins & Fin Boxes
The QT-Wave comes with 4x PATRIK Power wave (PW) fins. Center US 8” box to allow the use of bigger single fins. 4 side slot boxes to save weight.

Inserts
Each insert offers 4-positions and on the front strap has a double plug to be able and change width and angle for different foot size and riding style.

Volume distribution
The balanced thickness under your feet and around the mast track is one of the key points to create a good allround wave board. A light dome deck allows as to keep thinner rails while 'hiding' some volume in the center of the board. This trick also improves the stiffness and break resistance of the construction. The much thinner tail area gives you control, grip and manoeuvrability.

Rails / Tucked
The round rails & tuck starting in the nose area make the board feel smooth troughout the turn. Round rails give you control and also more grip. Under the mast track the tucked show a slightly more visible edge which gets a little sharper between the straps and ends up sharp right behind the back strap for early planning acceleration and top speed.

Deck Shape
The smooth balance ov the whole shape is being carried over into all details. The light domed deck is more round at the front foot for a comfortable stand and good grip in the straps when planing and jumping. More flat under the backfoot for a better connection to the wave.

PRO TIPS

BASTIEN ESCOFET (Professional Surfer)
"I ride the QT-Wave as my go-to waveboard in almost any kind of conditions, from onshore France to perfect Western Australia. My favourite fin setup is thruster or tri-fin as these setups make the board loose and radical. For more drive and control pick the quad setup. The best waveboard I've ever had!"

HENNING (R&D Team)

"I love the QT-Wave87 with a super wide stance. I mount the front footstrap in the first hole but most importantly the back strap in the last position. The backfoot all the way back on the tail gives the QT that amazing surfboard-like feeling. Sure it's a little more difficult to get going but the control and feeling of the wide stance on the wave is just amazing for me. Try it for yourself and see if it works for you as well!"

Volume — choose size

Liters · all sizes shown, sold-out marked

Shipping (Sweden) 849 kr

Free pickup in our Kungsbacka shop
14-day right of withdrawal
Personal advice from people who ride

Fråga en surfare

Osäker på storlek eller vilken utrustning som passar dig? Ring eller kom förbi butiken i Kungsbacka.

Ring Martin: 0300-44 00 01 Kom förbi butiken

Overview

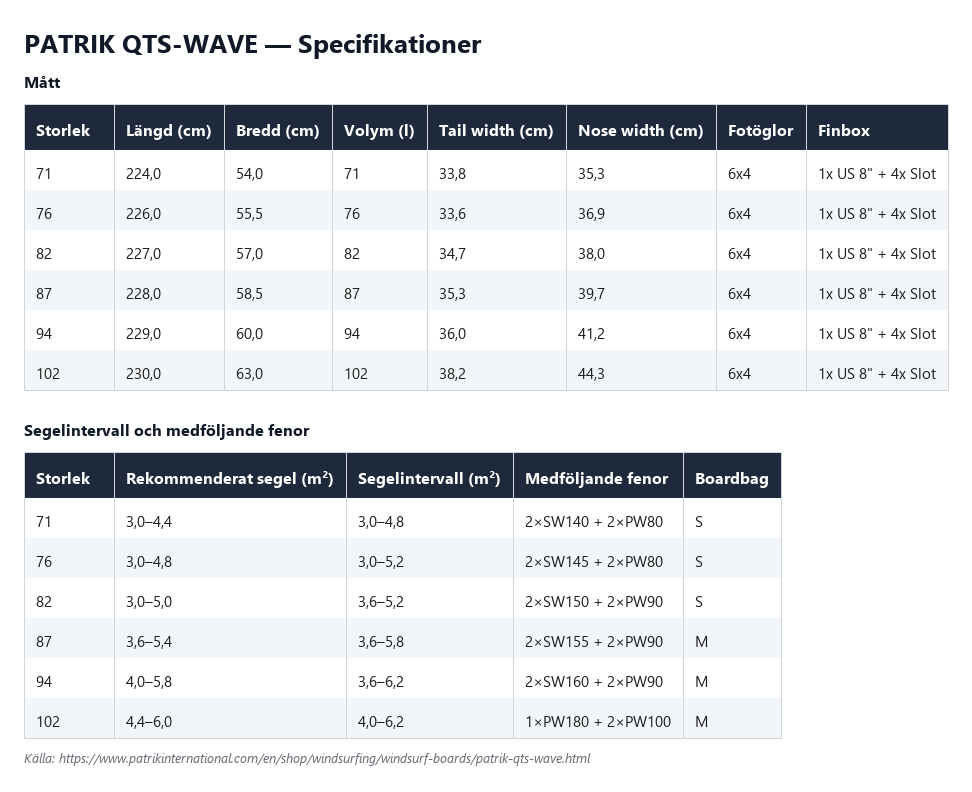

Specifications — all sizes

Size	71 L	76 L	82 L	87 L	94 L	102 L
Volume	71.0	76.0	82.0	87.0	94.0	102.0
Length	2240	2260	2270	2280	2290	2300
Width	540	555	570	585	600	630
Tail width	338	336	347	353	360	382
Nose width	353	369	380	397	412	443
Sail area	3.0–4.8	3.0–5.2	3.6–5.2	3.6–5.8	3.6–6.2	4.0–6.2
Best sail	3.0–4.4	3.0–4.8	3.0–5.0	3.6–5.4	4.0–5.8	4.4–6.0
Included fin	2x S-Wave 140 + 2x P-Wave 80	2x S-Wave 145 + 2x P-Wave 80	2x S-Wave 150 + 2x P-Wave 90	2x S-Wave 155 + 2x P-Wave 90	2x S-Wave 160 + 2x P-Wave 90	1x P-Wave 180 + 2x P-Wave 100
Boardbag	S	S	S	M	M	M

Sails & fins

Size	71 L	76 L	82 L	87 L	94 L	102 L
Fenspann Thruster	1×180–210 mm & 2×80–100 mm	1×180–210 mm & 2×80–100 mm	1×190–220 mm & 2×80–110 mm	1×200–230 mm & 2×80–110 mm	1×210–240 mm & 2×80–110 mm	1×220–250 mm & 2×90–120 mm
Fenspann Twinzer	2×155–170 mm	2×155–170 mm	2×160–175 mm	2×165–180 mm	2×170–185 mm	2×175–185 mm
Fenspann Singelfena	200–240 mm	200–240 mm	210–250 mm	220–260 mm	230–270 mm	240–280 mm

Range of use per size

Size	71 L	76 L	82 L	87 L	94 L	102 L
Nivå	Proffs	Proffs	Proffs	Proffs	Proffs	Proffs
Rekommenderad kroppsstorlek (S/M/L)	S–M	S–M	S–M	S–M–L	M–L	M–L
Förhållanden	Krabb sjö, våg	Krabb sjö, våg	Krabb sjö, våg	Krabb sjö, våg	Krabb sjö, våg	Krabb sjö, våg

Gallery

Shape & construction

Optical expression & footpads

New graphic expression for 2025 – clean, balanced and yet colorful. The 6 mm diamond-patterned traction deck has an extra 6 mm soft underlay, totaling 12 mm. The special construction allows the hard layer to spread the load over a larger part of the board via the soft underlay, which provides better shock resistance while maintaining a direct feel under your feet.

Shape & outline

Hand-shaped with flowing lines – soft and beautiful. After thousands of boards, our shaper Patrik Diethelm's experience and precision easily outshine any CNC software. The result is a perfect shape with a beautiful outline, progressive rails and perfect rocker lines. The wider front section provides enough lift in the nose for early planing and to take whitewater late. The narrow tail gives that aggressive feel when you move the board from rail to rail – maximum grip in cut-back turns.

Rocker line & bottom shape

New for 2025: the same outline as 2024 but with even deeper concaves, more rocker and more V, giving you the best of both worlds – good acceleration and speed on the straights, more response and a playful, radical feel in the turns. A slight tail kick under the back foot lets you adapt the turns to the wave at any time. Progressive bottom shape with even deeper concaves on the smaller sizes for more control.

Fins & fin boxes

QTS-Wave comes with 2x Patrik S-Wave back and 2x P-Wave front – the best compromise between crazy turning ability and good acceleration and pop. The centered US 8"-box allows for larger single fins, and 4 side slot boxes save weight. Size 102 comes in a thruster setup to complement light wind and wobble-and-ride use.

Footstrap inserts

Each insert has four positions, and the front strap has a double plug to adjust the width and angle according to foot size and style. New for 2025: 4-screw double insert on the back strap for extra strength and a twist-free back strap – the feature also allows for 2-screw asymmetrical back strap placement for pure down-the-line sailing.

Volume distribution

The balanced thickness under the feet and around the mast track is key to a good all-round wave board. A slightly domed deck allows us to keep thinner rails while 'hiding' volume in the middle of the board – a trick that also improves the stiffness and break resistance of the construction. The significantly thinner tail surface gives you control, grip and maneuverability.

Rails & tuck

The rounded rails and tuck that starts right in the nose make the board feel soft throughout the turn. Rounded rails provide control and more grip. Under the mast track, the tuck is visible as a slightly clearer edge, which becomes a bit sharper between the straps and sharp right behind the back strap for early planing acceleration and top speed.

Deck shape

The soft balance throughout the shape is carried through in all details. The slightly domed deck is rounder at the front foot for a comfortable standing position and good grip in the straps during planing and jumps, and flatter under the back foot for better contact with the wave.

Construction & materials

A full carbon fiber/kevlar deck provides a light and stiff construction with good shock resistance, while biax fiberglass in the bottom provides the controlled extra flex that the windsurfers in our team love in big turns and hard landings. The softer biax fiberglass distributes the load better through the 3D construction than a full-cast carbon fiber bottom would, providing better and more controlled flex, better strength and better performance – while keeping production costs down where it's not needed, for a more affordable board. Patrik Diethelm's knowledge of composite construction is unmatched in the windsurfing industry. New for 2025: optimized strength-to-weight ratio.

Usage

Suitable for windsurfers who want to travel light and be able to adapt the board to all types of wave spots and conditions – from intermediate to advanced. Thanks to the many fin options, you can quickly adjust the board for everything from loose, radical riding to more controlled drive. We recommend the QTS-Wave over the TS-Wave in down-the-line conditions and for long, fast bottom turns – the QTS has more grip and more drive. The TS-Wave wins in onshore conditions and hollow waves that you want to ride tight in the pocket, with the ability to go super vertical and a loose, free feel.

Pro tips

“The new QTS-Wave is the most radical PATRIK waveboard we've ever designed. We opted for deeper concaves from the center all the way to the tail. That way we found more grip, more drive and an overall more playful and radical behaviour on the wave. At the same time we preserved 99% of the early planing and good jumping ability of the original QT-Wave. The new Quad fin setup is part of the secret: With P-Wave fronts and S-Wave rears we've found the magic fin combo that makes that board shine in any conditions. I like to ride my QTS with a wide stance. Front strap all the way forward on the waveriding side and second from the front on the jumping side. Rear strap second hole from the rear. That spread-out stance helps for a surf-like feeling and control in big airs.”

Simon Thule Professional Surfer

Video

7:15 Waveboard Setup with John Skye: Patrik QTS Wave John Skye om sin uppsättning för QTS-Wave

5:13 FUERTE STRIKE MISSION - Wave QTS in Action Adam Warchol, Alessio Stillrich, Leon Jamaer och John Skye på våghunt i Fuerteventura

FAQ

Vilken fenkonfiguration ska jag välja?

Quad för lös, krabb sjö. Thruster som kompromiss när vågen är renare. Single fin för renare, dragna linjer.

Vilken storlek passar min vikt?

Mindre storlekar (71–82 L) passar lättare vindsurfare som vill ha en aggressiv, radikal känsla på vågen, medan större storlekar (94–102 L) ger mer volym och passar tyngre vindsurfare eller lugnare förhållanden. Se volymen för varje storlek under Specifikationer ovan för att hitta rätt bräda för din vikt.
